Nicorex Alloys is an ISO 9001 and ISO 14001 certified, trusted metal sheets and plates supplier in Mumbai, stocking hot rolled plate and cold rolled sheets across nickel alloy, duplex, super duplex, and speciality steel families. Every batch ships with MTC 3.1 per EN 10204.
Sheet metal is a flat-rolled product made from slabs by hot rolling or cold rolling. From pressure vessel shells at 300-bar to 0.5 mm shim stock lining a pharmaceutical reactor, every metal sheet plate in a critical application must carry verified chemistry and documented origin. Flat products up to 6 mm (0.23 inch) thick are sheets; above 6 mm is a plate. Sheets are cold rolled for tighter tolerances. Plates are hot rolled for structural and pressure vessel work.
Our stock covers Hastelloy (C276, C22, C2000, X, Alloy 59), Inconel (600, 625, 625 LCF, 718), Incoloy (800/800H/800HT, 825), Monel 400, Nickel 200/201, Alloy 20, 904L, Duplex S31803/S32205, and Super Duplex S32750/S32760. Forms include HR plates, CR sheets, shim sheets, perforated sheets, chequered plates, coils, strips, and foils.
We supply plate and sheet metal from 0.5 mm and plates up to 200 mm thicknesses, in widths from 1000 to 2500 mm, and lengths from 2000 to 6000 mm or cut to your required size. Finishes include 2B, 2D, BA, No.1, No.4, No.8, hairline, and chequered. Cut-to-size sheet and plate services cover plasma, laser, waterjet, and shearing. We supply fabricators and EPC contractors across India and 40+ export markets.
Sheets and Plates Material Grades
Hastelloy Sheets and Plates
Inconel and Incoloy Sheets and Plates
Monel Sheets and Plates
Nickel Sheets and Plates
Duplex Steel Sheets & Plates
Super Duplex Steel Sheet & Plate
Sheets and Plates Specification
| Parameter | Details |
|---|---|
| Standard | ASTM, ASME, JIS, DIN, EN, GB |
| Sheet Thickness | 0.5 to 6 mm |
| Plate Thickness | 6 mm to 200 mm |
| Width | 1000, 1219, 1250, 1500, 2000, 2500 mm |
| Length | 2000, 2440, 3000, 6000 mm (or cut-to-size) |
| Form | HR Plates, CR Sheets, Coils, Strips, Shim, Perforated, Chequered, Circles |
| Surface Finish | 2B, 2D, BA, No.1, No.4, No.8, Hairline, Embossed, Chequered |
| Edge | Mill Edge, Slit Edge, Trimmed Edge |
| Condition | Annealed, Solution Annealed, HR, CR, Pickled, Descaled |
Get Sheet and Plate at Competitive Prices
Steel Sheet Thickness Gauge Chart
| Gauge | SS (mm) | Steel (mm) | Galv. (mm) | Al (mm) |
|---|---|---|---|---|
| 10 | 3.57 | 3.42 | 3.51 | 2.59 |
| 14 | 1.98 | 1.90 | 2.01 | 1.63 |
| 16 | 1.59 | 1.52 | 1.63 | 1.29 |
| 18 | 1.27 | 1.21 | 1.32 | 1.02 |
| 20 | 0.95 | 0.91 | 1.02 | 0.81 |
| 24 | 0.64 | 0.61 | 0.71 | 0.51 |
Sheet and Plate Surface Finish
| Finish | Process | Appearance | Application |
|---|---|---|---|
| No.1 | HR + annealed + pickled | Rough, matte | Industrial, structural |
| 2D | CR + annealed + pickled | Smooth, matte | Deep drawing |
| 2B | CR + annealed + skin pass | Smooth, reflective | General fabrication |
| BA | CR + bright annealed | Highly reflective | Pharma, food, cleanroom |
| No.4 | 120–150 grit polished | Satin grain | Architectural, kitchen |
| No.8 | Polished + buffed | Mirror | Decorative, signage |
| Chequered | Diamond pattern | Raised non-slip | Floor plates, stairways |
Types and Forms of Sheets and Plates We Supply
Nicorex stocks multiple forms of sheets and plates for vessel fabrication, shimming, and coil-processing.
Shim Sheets
Thin metal sheets with a thickness of 0.05–2 mm are used to space and align rotating parts.

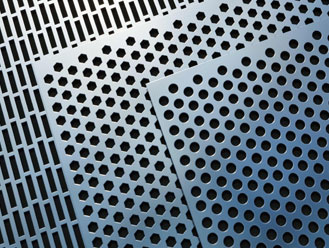

Perforated Sheets
Metal sheets with round, square, or long holes are used for filtering and airflow.

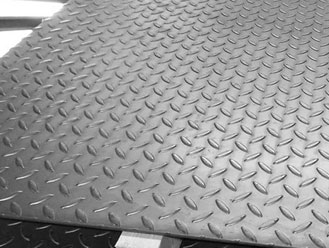

Chequered Plates
Plates with a raised pattern that prevent slipping on walkways and platforms.
Coils
Continuous flat metal is used for cutting, stamping, and roll-forming.
Strips
Narrow metal strips, 10–600 mm wide, are used for gaskets and stamping.
Foils
Ultra-thin sheets below 0.15 mm are used for heat shielding and laboratory use.
Sheet and Plate Weight Calculation
| Material | UNS | g/cm³ | kg/m²/mm |
|---|---|---|---|
| SS 316/316L | S31600 | 8.00 | 8.00 |
| Duplex 2205 | S32205 | 7.80 | 7.80 |
| Inconel 625 | N06625 | 8.44 | 8.44 |
| Inconel 718 | N07718 | 8.19 | 8.19 |
| Incoloy 825 | N08825 | 8.14 | 8.14 |
| Hastelloy C276 | N10276 | 8.89 | 8.89 |
| Hastelloy C22 | N06022 | 8.69 | 8.69 |
| Monel 400 | N04400 | 8.83 | 8.83 |
| Nickel 200 | N02200 | 8.89 | 8.89 |
Sheet Metal Fabrication and Cut-to-Size Services
| Method | Thickness | Tolerance | HAZ | Best For |
|---|---|---|---|---|
| Plasma | 6–200 mm | ±1 mm | Yes | Thick CS/SS plates |
| Laser | 0.5–25 mm | ±0.1 mm | Minimal | Ni alloys, precision |
| Waterjet | 0.5–200 mm | ±0.2 mm | None | Exotic alloys |
| Shearing | 0.5–6 mm | ±0.5 mm | None | Thin sheets |
| Slitting | Typically 0.3–6 mm | ±0.1 to ±0.3 mm | None | Converting wide coils into narrow strips, high-volume strip production, and precision coil processing |
| Levelling | Typically 0.5–25 mm | Flatness tolerance improves to tight levels | None | Removing coil-set, improving flatness, preparing sheets for laser/plasma cutting and fabrication |
Industrial Applications of Sheets and Plates
- Oil and Gas: Vessel shells, tubesheets, and pipeline cladding.
- Chemical and Petrochemical: Reactor linings, acid tank walls.
- Power Generation: Boiler baffles, condenser tubesheets, and FGD linings.
- Marine, Offshore and Shipbuilding: Hull cladding, FPSO deck plates, and seawater heat exchangers.
- Pharmaceutical, Food and Dairy: BA-finish reactor vessels, cleanroom cladding.
- Pulp and Paper: Digesters, washer drums, and evaporator plates.
- Desalination and Water Treatment: RO frame plates and brine heater tubesheets.
How to Order Sheets and Plates
- Material grade + ASTM spec
- Form: HR plate / CR sheet / coil / strip / shim / perforated / chequered
- Thickness in mm
- Width × length (mill size or cut-to-size)
- Surface finish: No.1 / 2B / 2D / BA / No.4 / mirror
- Edge: mill/slit / trimmed
- Condition: annealed / HR / CR / pickled
- Quantity: pieces, kg, or MT
- Documentation: MTC 3.1, TPI, UT, PMI
- Packaging + delivery address
Related Products from Nicorex Alloys
Frequently Asked Questions
What is the difference between a sheet and a plate?
What Surface Finishes are available?
What ASTM Standards apply to Nickel Alloy Sheets and Plates?
How is Sheet and Plate weight calculated?
What is the difference between Hot Rolled and Cold Rolled?
Can Nicorex Alloys provide Cut-to-Size Sheets and Plates?
Yes, cut-to-size sheet and plate services via plasma, laser, waterjet, and shearing are available. Stock items are dispatched within 24 hours.
Do you supply Sheets and Plates across India?
Yes, ready stock from Mumbai with delivery across India and exports worldwide.
