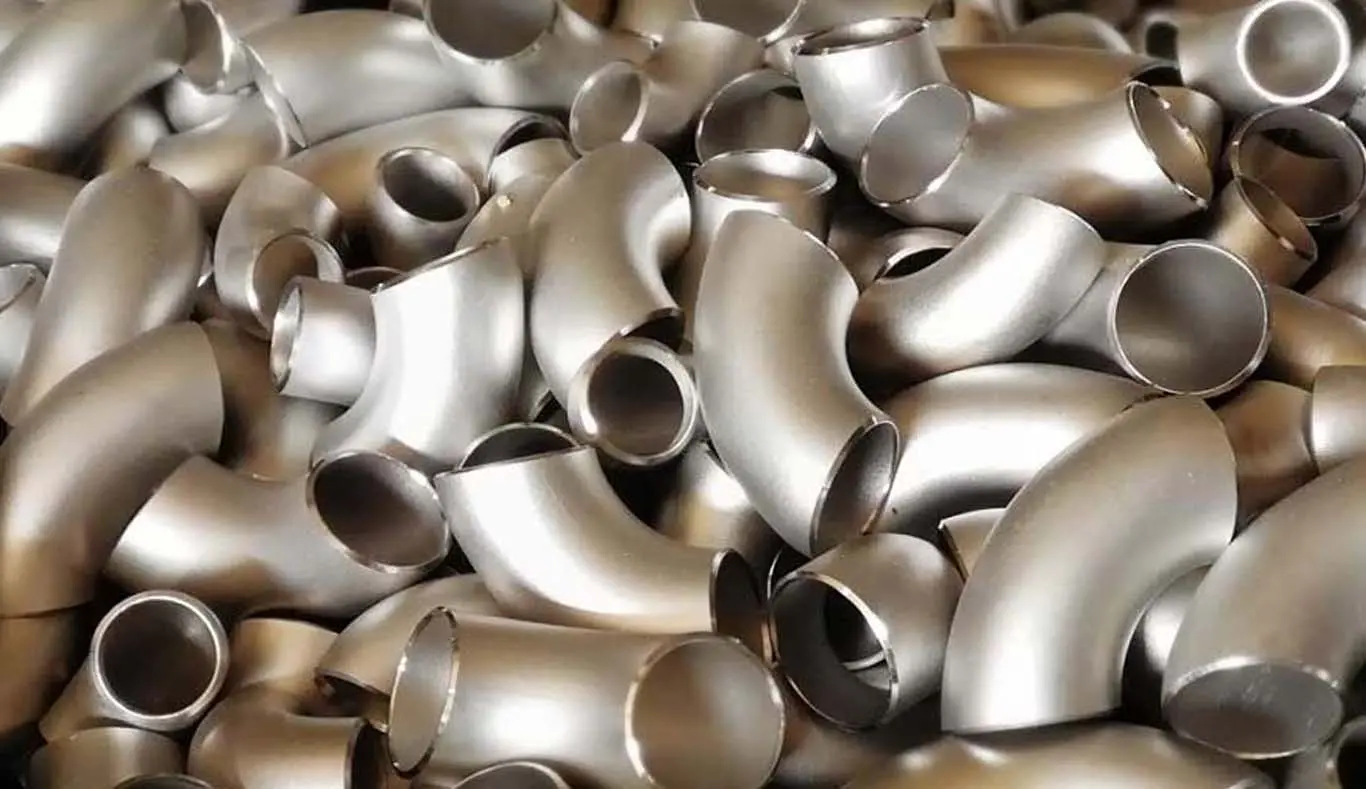

Hastelloy C276 Pipe Fittings Supplier in Mumbai, India
Nicorex Alloys is an ISO 9001 and ISO 14001 certified supplier, importer, stockist and trading company for Hastelloy C276 pipe fittings based in Mumbai, India. We supply buttweld fittings per ASTM B366 / ASME SB366 (designated WPHC276 for pressure service, CRHC276 for corrosion-resistant service).
The alloy has a nominal composition of 57% nickel, 16% chromium, 16% molybdenum, 4% tungsten and very low carbon (≤0.01%). This balance provides excellent resistance in both reducing and oxidising environments and helps prevent carbide precipitation during welding. Its pitting resistance equivalent number (PREN) is about 69, and the critical pitting temperature (CPT) is above 150°C in acidified 6% FeCl₃. The minimum tensile strength is 690 MPa (100 ksi), the minimum yield strength is 283 MPa (41 ksi), and the minimum elongation is 40%. Buttweld fittings include elbows (45°, 90°, 180°), tees, reducers, caps, stub ends and crosses, in accordance with ASME B16.9.
C276 fittings are available in buttweld sizes from NPS 1/2″ to 24″. They are solution annealed at or above 1121°C (2050°F) and rapidly water quenched, so no post‑weld heat treatment is needed. All fittings are NACE MR0175 / ISO 15156 compliant and supplied with EN 10204/3.1 MTCs for every shipment.
Hastelloy C276 Pipe Fittings Specifications
The following table provides key specifications for Hastelloy C276 pipe fittings, including material standards, dimensional requirements, size ranges, heat treatment conditions and source material forms.
| Material Standards | ASTM B366 / SB366 |
|---|---|
| Fitting Designation | WPHC276 (pressure), CRHC276 (corrosion-resistant) |
| Dimensional Standards | ASME B16.9, B16.28, MSS SP-43 |
| Size Range | NPS 1/2″ to 24″ (DN15 to DN600) |
| Schedules | 5S, 10S, 40S, 40, 80S, 80, 100, 120, 160, XXS |
| Bending Radius | R = 1D, 1.5D (LR), 2D, 3D, 5D |
| End Connections | Buttweld (bevelled per B16.25) |
| Source Material | B622 seamless pipe, B619 welded pipe, B575 plate |
| Heat Treatment | Solution annealed ≥1121°C (2050°F) + rapid quench |
| Surface Finish | As-annealed, pickled, electropolished (pharma) |
Chemical Composition of Hastelloy C276 Pipe Fittings
The following table presents the chemical composition of Hastelloy C276 pipe fittings per ASTM B366 (UNS N10276), showing specified elemental ranges and typical nominal values.
| Material / Element | Nickel (Ni) | Chromium (Cr) | Molybdenum (Mo) | Tungsten (W) | Iron (Fe) | Cobalt (Co) | Silicon (Si) | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Spec Range (%) | Balance (≥57) | 14.5–16.5 | 15.0–17.0 | 3.0–4.5 | 4.0–7.0 | 2.5 max | 0.08 max | 0.01 max | 1.0 max | 0.04 max | 0.03 max |
| Nominal (%) | 57 | 16 | 16 | 4 | 5 | — | 0.08 | 0.01 | — | — | — |
B366 buttweld fittings inherit composition from source material (B622 pipe, B619 pipe, or B575 plate). Low C (≤0.01%) prevents carbide precipitation; low Si (≤0.08%) prevents µ phase. Mo (16%) resists HCl, H₂SO₄, and chloride pitting. Cr (16%) handles HNO₃ and FeCl₃. Always verify that MTC 3.1 certifies composition for both source material and finished fitting.
Mechanical Properties of Hastelloy C276 Pipe Fittings
The following table shows the mechanical properties of solution-annealed Hastelloy C276 pipe fittings per ASTM B366.
| Property | Tensile Strength | Yield Strength (0.2% offset) | Elongation |
|---|---|---|---|
| Minimum Value | 690 MPa (100 ksi) | 283 MPa (41 ksi) | 40% |
B366 fittings meet the same tensile requirements as the source pipe. Charpy impact testing is not standard per B366, but can be specified for cryogenic service. Hardness ≤241 HBW is frequently mandated by EPC contractors for NACE MR0175 sour applications.
C276 Hastelloy Pipe Fittings – Equivalent Grades
The following table lists international equivalent designations and material standards for C276 Hastelloy pipe fittings.
| Property | UNS | Werkstoff | EN | DIN | JIS |
|---|---|---|---|---|---|
| Designation | N10276 | 2.4819 | NiMo16Cr15W | 17751 | NW 0276 |
Premium Industrial Materials
Get Hastelloy C276 Pipe Fittings at Competitive Prices
ISO Certified
Custom Sizes
Fast Delivery
Types of Hastelloy C276 Pipe Fittings
C276 fittings come in buttweld (ASTM B366) for permanent welded connections.
Hastelloy C276 Elbow (45° / 90° / 180°)
Hastelloy C276 Tee (Equal / Reducing / Barred)
Hastelloy C276 Reducer (Concentric / Eccentric)
Hastelloy C276 Cap
Hastelloy C276 Stub End
Hastelloy C276 Cross
Hastelloy C276 Pipe Bend
Hastelloy C276 Pipe Nipple
Industries Using Hastelloy C276 Pipe Fittings:
C276 fittings are used wherever C276 piping is installed. The fitting is an important link.
- Chemical Processing & Reactor Piping: Reactor manifolds with multiple branch connections. Direction changes in acid transfer piping (H₂SO₄, HCl, HF). A typical chemical reactor system uses 15–25 C276 fittings per 100 m of pipe.
- Oil & Gas / Sour Service: Barred tees in sour gas gathering manifolds. Reducers at wellhead connections. All fittings are NACE MR0175 compliant, hardness ≤241 HBW.
- Flue Gas Desulfurization (FGD): Large-bore elbows (NPS 12"–24") for scrubber ducting. Eccentric reducers at the slurry pump suction. The stub has lap-joint flanges on the ends for easy access for maintenance.
- Pharmaceutical & Food Processing: Electropolished C276 fittings for reactor piping in halogenated solvents. Tri-clamp fittings for CIP-compatible sanitary installations.
- Pulp & Paper: Fittings in the bleach plant piping handling ClO₂ and hypochlorite. Direction changes in black liquor and evaporator lines.
- Marine & Offshore: Used in seawater cooling piping systems and fittings for reliable and corrosion-resistant performance
How to Order Hastelloy C276 Pipe Fittings from Nicorex Alloys
Provide the given details for your order:
- Material Grade: HASTELLOY C276 (UNS N10276)
- Product Standard: ASTM B366 / ASME SB366 (Buttweld)
- Fitting Type: Elbow (45°/90°/180°), Tee, Reducer, Cap, Stub End, Cross, etc.
- Manufacturing Type: Buttweld
- Size: NPS (Nominal Pipe Size)
- Schedule / Wall Thickness: SCH 10S, 40S, 80S, 160, XXS (as required)
- Dimensional Standard: ASME B16.9
- Special Requirements: NACE compliance (if sour service), heat treatment, PMI testing, etc.
- Documentation: MTC 3.1 as per EN 10204, inspection & third-party certification (if required)
Frequently Asked Questions
What is the ASTM Standard for Hastelloy C276 Buttweld Pipe Fittings?
ASTM B366 / ASME SB366 covers buttweld fittings in N10276, designated WPHC276 (pressure) or CRHC276 (corrosion-resistant). Dimensions per ASME B16.9 and B16.28.
What is the price of Hastelloy C276 Pipe Fittings per Kg in India?
The price depends on the type of fitting, its size, the schedule and whether it is buttwelded. Fittings cost more per kg than pipe because they need extra forming and heat treatment. Contact Nicorex Alloys for current pricing.
Are Hastelloy C276 Fittings NACE MR0175 compliant?
Yes. UNS N10276 is listed in NACE MR0175 / ISO 15156 for sour service. Fittings must be solution annealed with hardness ≤241 HBW. Specify NACE compliance on purchase orders.
